Loudspeaker Driver Acoustical and Electrical Models

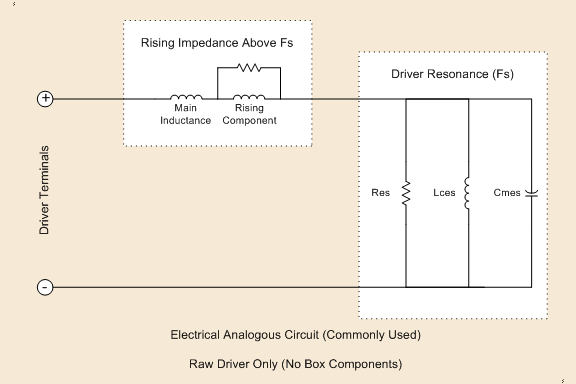

The basic representations of loudspeakers are shown in the electrical and acoustical models. The first one is the classic Thiele/Small acoustical analogous circuit (for low frequency modelling of driver and box only). The second one is the common driver electrical analogous circuit for the full range model (driver only, no box).
